Fuel Injection Internal Gear Pump Suppliers in IndiaME FIG Series

ME FIG Series pumps – FUEL INJECTION INTERNAL GEAR PUMP which are high pressure internal gear pumps and can be used within the working pressure of within 40 bar applications in any industrial application.

Since These pumps are positive displacement gear pump, so they are most suitable and widely running in burner and boiler applications and can generate good self-priming & high vacuum suction lift. The only limiting factor is the liquid which is going into the pump must be clear and clean.

Now being accepted in global MNCs as OEM supplier, these pumps are world’s most cost-effective and highly efficient solutions for all types of high-pressure application.

  • Pump Body, covers: Grades Cast Iron FG260 IS210-2009, Cast Steel (WCB)
  • Gears: SAE 8620, HSS (Hard & Grind)
  • Rotter (Shaft): EN19 (4140) (Hard & Grind)
  • Shaft support: bronze Bush, needle roller bearing
  • Sealing: Mechanical seal PB vs Alloy steel (Hard-grind-lap)

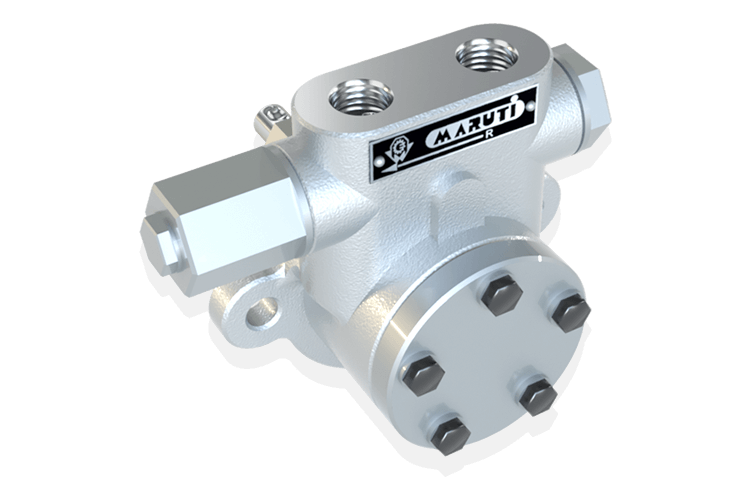

ME FIG Series - Fuel Injection Internal Gear Pump
360° View
  • Type of pump: Positive Displacement Gear Pump
  • Concept: Internal Gear Pump
  • Brand: Maruti
  • Speed: 1440/2880 RPM
  • Pressure: Up to 35 Bar
  • Temperature: up to200° C max,
  • Direction: CW-RH, ACW-LH, looking from shaft end
  • Fuel Liquid can be handled: LDO, FO, Diesel, Petrol, Kerosene
  • Viscosity: 5 cstto 500cst
  • Capacity: 60 LPH to 6000 LPH
  • Max Pressure: 40 bar
  • Size: 3/8″ BSP, 1/2″ BSP, 3/4″ BSP, 1 1/2″ BSP Screw end connection
  • Concept: Internal Gear Pump
  • Capacity: 60 LPH to 6000 LPH
  • Size: 3/8″ BSP, 1/2″ BSP, 3/4″ BSP, 1 1/2″ BSP Screw end connection
  • Shaft Seal: Mechanical Seal (Up to 150’C)
  • Pressure: Up to 35 Bar
  • MOC: Cast Iron vs Alloy Steel & Non-Ferrous
  • Oil Burner
  • Boilers
  • Force Feed Lubrication
  • Most Suitable for Furnace Oil (LSHS)
  • LDO
  • DIESEL (HSD) & Bio-diesel
  • Palm oil residue
  • Kerosene, as Booster Pump for Heavy Diesel Engine
  • Pumping for oil Filter system
